ROCKPORT MARINE 26'

Measurements:



Cruising Speed: 20 kn

Max Speed: 28 kn

LOA: 26 ft

LWL: 24 ft

Beam: 9 ft

Max Draft: 2 ft 9 in

Fuel Tanks #: 2

Fuel Tanks Capacity: 25 gal

Fuel Tanks Material: Other

Fresh Water Tanks #: 1

Fresh Water Tanks Capacity: 30 gal

Fresh Water Tanks Material: Stainless Steel

Holding Tanks #: 1

Holding Tank Capacity: 5 gal

Holding Tanks Material: Plastic

Number of Heads: 1



Propulsion:

Engine #1

Engine Make: Volvo

Engine Model: D3

Primary Engines: Inboard/Outboard

Drive Type: Stern Drive

Location: Center

Hours: 48

Power: 200 hp

Manufacturer Provided Description

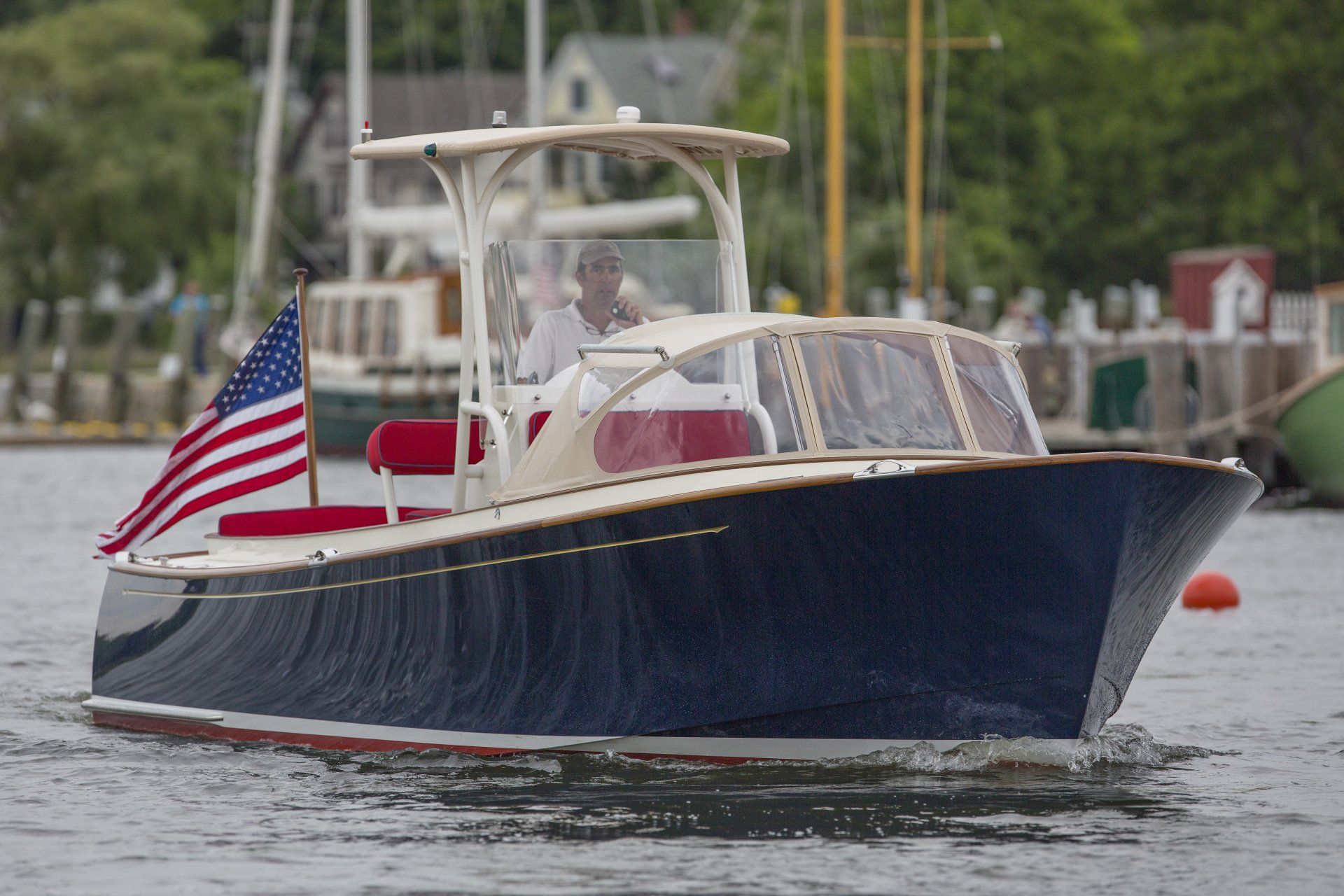

REMBRANDT was designed and built to be the ultimate day boat.  She has classic styling that istimeless, yet stunning!  Suitable for a day trip around the harbor, fishing or even as a yacht tender.  REMBRANT has a cold molded wooden hull with fiberglass outer skin.  She is a great example ofthe wonderful craftsmanship of the Maine boat builder, Rockport Marine. She is so pretty that she will turn heads in any harbor she enters!



SPECIFICATIONS, DESCRIPTIONS AND DETAILS



HULL CONSTRUCTION:



THE HULL IS COMPRISED OF COLD MOLDED WOOD TOPSIDES AND COLD MOLDED MARINEPLYWOOD BOTTOM OVER PERMANENT MARINE PLYWOOD BULKHEADS/FRAMES.



DECK CONSTRUCTION:

THE DECK IS COMPRISED OF AWL GRIP AND 10 OZ FIBERGLASS CLOTH SET IN EPOXY OVER TWO LAYERS OF 7MM (9/32”) OKOUME MARINE PLYWOOD. THE PLYWOOD SKINS ARE TO BE MECHANICALLY FASTENED AND EPOXY BONDED TO LAMINATED WOOD DECK FRAME WITH WEST SYSTEM RESINS. THE UNDERSIDE OF THE PLYWOOD DECK IS TO BE FINISHED WITH AWL GRIPS NOW WHITE.  A COMBINATION TOE-RAIL, COVERING BOARD, AND RUB RAIL IS FITTED TO THE PERIMETER OFTHE DECK.  A SINGLE FLUSH, WATERTIGHT DECK HATCH IS FITTED IN THE FOREDECK.



PAINT SYSTEM

TOPSIDES: AWLGRIP CLEARCOAT OVER AWLGRIP TOPCOAT, ARCADIA BLUE

BOOT TOP: AWLGRIP, MATTERHORN WHITE G8003

COVE STRIPE: AWL GRIP, CORDOVAN GOLD

ANTIFOULING:MICRON 66 ABLATIVE



TOERAIL

THE JOINERY APPLIED TO THE DECK PERIMETER IS NOT A “TOERAIL” IN THE TRADITIONAL SENSE.  A SINGLE VARNISHED TEAK MEMBER SERVES AS A COVERING BOARD, TOERAIL, AND RUB RAIL. SIX CUSTOM STAINLESS-STEEL CLOSED CHOCK CASTINGS ARE LET INTO THE TOE RAIL (3 EACH SIDE).



STEERING SYSTEM

VOLVO POWER ASSISTED STEERING WITH HYDRAULIC HELM.



MECHANICAL SYSTEMS - GENERAL

THE ENGINE IS LOCATED DIRECTLY BENEATH THE CENTER CONSOLE.  THE CONSOLE PIVOTS FORWARD ON ROBUST STAINLESS-STEEL HINGES TO PROVIDE ENGINE AND MECHANICAL SYSTEMS ACCESS.



MAIN ENGINE

MANUFACTURER: VOLVO PENTA

MODEL: D3

POWER: 200 HP



STERN DRIVE

MANUFACTURER: VOLVO PENTA

MODEL: AQUAMATIC DRIVE DPS,REDUCTION: 2.14:1

DUOPROP



ENGINE EQUIPMENT

ALTERNATOR:180A 12VDC STANDARD EQUIP.





ENGINE/GEARBOX CONTROLS AND GAUGES

ELECTRONIC SHIFT AND THROTTLE

SINGLE LEVER TOP MOUNT CONTROL WITH INTEGRAL TRIM BUTTON, CRUISE CONTROL, AND POWER TRIM ASSISTANT

CRUISE CONTROL

VOLVO E-KEY

POWER TRIM ASSISTANT

EVC CONTROL PANEL

EVC TRIP COMPUTER FOR: FUEL RATE, TRIP FUEL, INSTANT FUEL CONSUMPTION, AVERAGE FUELCONSUMPTION, TRIP DISTANCE, ESTIMATED DISTANCE REMAINING, AVERAGE FUEL RATE, TRIP TIME.

EVC TACHOMETER

ALARMS FOR OIL LEVEL, OIL PRESSURE, COOLANT TEMPERATURE

2” FARIA ANALOGUE GAUGES (CHESAPEAKE WHITE & STAINLESS STEEL) AS FOLLOWS:

ENGINE HOURS

OIL PRESSURE

OIL LEVEL

WATER TEMPERATURE

FUEL

VOLTMETER



DRIVETRAIN

DUOPROP STERN DRIVE WITH ENGINE REMOTE MOUNTED FROM TRANSOM ASSEMBLY VIA JACKSHAFT.

THRUST BEARING: AQUADRIVE



FUEL SYSTEM

1 RMI CUSTOM FABRICATED MONEL FUEL TANK INSTALLED BELOW THE SOLE AND IMMEDIATELY FORWARD OF THE ENGINE.

FUEL TANK CAPACITY: 50 US GAL APPROX.

FUEL TANK PLATE THICKNESS: 1/8” MONEL

FUEL TANK BAFFLE: 30” CENTERS (POLYETHYLENE)

FUEL FILTER RACOR 500 MA-2 TURBINE SERIES 10-MICRON FILTER WITH SHUT OFF VALVES FOR SERVICE EACH SIDE OF FILTER.

FUEL GAUGE 2” VOLVO BRAND (VDO MANUFACTURER) FUEL GAUGE CONFIGURED WITH MAGNETIC TUBE STYLE SENDING UNIT.





WASHDOWN PUMP

12VDC,4.0GPM SELF-PRIMING WASHDOWN PUMP



BILGE PUMPINGA

PAIR OF ULTRA SWITCH ACTUATED SUBMERSIBLE PUMPS PLUMBED TO STRUM BOX PICKUPS IN2 SEPARATE BILGE COMPARTMENTS

MACERATOR FLUSH PUMP- 24VDC INTEGRAL TO TOILET

DIVERTER VALVE- LOCKABLE DIVERTER VALVE 1-1/2” DISCHARGE



FRESH WATER SYSTEM

THE DOMESTIC WATER SYSTEM CONSISTS OF A SINGLE 30 GALLON STAINLESS STEEL TANK FITTED AFT OF THE ENGINE AND BELOW THE SOLE, BENEATH THE DRIVE TRAIN JACK SHAFT.A SINGLE12VDC PUMP DELIVERS COLD WATER UNDER PRESSURE TO A WASH DOWN HOSE AND SPRAY NOZZLE STORED IN THE AFT SEATING COMPARTMENT. THIS IS THE SAME PUMP THAT IS USED FOR SALT WATER WASH DOWN.



TOILET AND BLACK WATER SYSTEM

THE BLACK WATER SYSTEM IS COMPRISED OF A SINGLE 12VDC ELECTRIC SALTWATER FLUSH TOILET DISCHARGING WASTE TO EITHER A HOLDING TANK OR DIRECTLY OVERBOARD VIA A VALVE.

TOILET: JABSCO 58500 LITE FLUSH 12VDC ELECTRIC SALTWATER FLUSH

TANK- 5-GAL POLYETHYLENE

12VDC DISCHARGE PUMP- INTEGRAL TO TOILET

RINSE PUMP- 12VDC DELIVERED WITH LITE FLUSH SYSTEM





MECHANICAL SYSTEMS MONITORING AND ALARM

LIQUID LEVEL MONITORING OF THE CONTENTS OF ALL TANKS AND BILGE COMPARTMENTS IS DONE THROUGH AN INTEGRATED SYSTEM FROM BEP MARINE. THE SYSTEM IS COMPRISED OF BEP ULTRASONIC SENDING UNITS FITTED TO THE TOPS OF ONE FUEL TANK AND ONE WATER TANK.THE SENDING UNITS COMMUNICATE WITH A BEP DC SYSTEMS MONITOR (DCSM)





ELECTRICAL - GENERAL

THE DESIGN AND INSTALLATION OF ALL AC AND DC ELECTRICAL SERVICE IS EXECUTED IN COMPLIANCE WITH ABYC AND INDUSTRY BEST PRACTICES. THE ELECTRICAL INSTALLATION IS COMPRISED OF ENGINE START AND HOUSE BATTERY BANK (1 EACH) BATTERY SWITCH, 12VDC BREAKER PANEL. SHORE POWER CONNECTION AND BATTERY CHARGER ARE INCLUDED.

ENGINE START BATTERY VICTRON 110AH

HOUSE BATTERY VICTRON 110AH

BATTERY SWITCH

SHORE POWER & BATTERY CHARGER: (VICTRON PHOENIX 12/30)

BATTERY ISOLATOR VICTRON ARGO FET

SHORE POWER CONNECTION- 30A 125V 316 SS POWER INLET

DC BREAKER PANEL



LIGHTING, SWITCHES, AND OUTLETS

THE VESSEL IS EQUIPPED WITH LED COURTESY AND NAVIGATION LIGHTS.

SEARCHLIGHT- HAND-HELD SEARCH LIGHT

AUDIO SPEAKERS: QTY 2 X JL AUDIO MX 650 SPEAKERS



NAVIGATION ELECTRONICS

GARMIN GPSMAP 8212

GPS 19X NMEA 2000® ANTENNA

VHF RADIO- ICOM MOUNTED IN CONSOLE

COMPASS- FLUSH MOUNT



SOLE

THE SOLE SURFACE IS 2”X ¼” SOLID TEAK PAYED WITH TEAK DECK SYSTEMS BLACK SIS440 TEAKCAULK SEAMS OVER ½” SOUND INSULATING PLYWOOD. A MARGIN PLANK FOLLOWS THE PERIMETER OF THE SOLE.

FOREPEAK

THE FOREPEAK IS PRINCIPALLY A UTILITARIAN STORAGE SPACE. ACCESS IS PROVIDED VIA AN OPENING IMMEDIATELY FORWARD OF THE SETTEE BACK REST. A SOLE IS TO BE FITTED WITHIN THE COMPARTMENT TO KEEP ITEMS STORED WITHIN FROM COLLECTING IN AN INACCESSIBLE LOW POINT AGAINST THE HULL.

CONSOLE

THE CONSOLE IS A SINGLE PIECE MOLDED FIBERGLASS ASSEMBLY, HINGED AT THE FRONT AND RAISED BY MEANS OF TWIN POWERED BENNETT MARINE 24” STROKE HYDRAULIC CYLINDERS. THE ENTIRE CONSOLE IS WELL INSULATED AND GASKETED TO KEEP NOISE ENTERING THE ACCOMMODATION SPACE TO AN ABSOLUTE MINIMUM.THE HELM IS PROTECTED BY A CUSTOMT-TOP WITH CANVAS COVER

ANCHOR AND GROUND TACKLE

THE ANCHOR HANDLING SYSTEM IS COMPRISED OF A SINGLE 20 LB GALVANIZED STEEL CQR ANCHOR. THE ANCHOR IS STORED BENEATH THE FORWARD SETTEE AND DEPLOYED BY HAND.

ANCHOR- 20 LB CQR

RODE- 150 FT½” NYLON BRAID

WASH DOWN

THERE IS A FRESH WATER, WASH DOWN SYSTEM POWERED OFF A 4VDC PUMP.PUMP- 12VDC, 4.0 GPM SELF-PRIMING

BULWARK/TOERAIL

THE PERIMETER OF THE DECK IS FITTED WITH A SOLID TEAK ELLIPTICAL SECTION TOERAIL FINISHED IN AWL BRITE CLEAR GLOSS.

HATCHES

THREE FLUSH HATCHES ARE FITTED. 1 IN THE FOREDECK, 2 IN THE COCKPIT SOLE.

DECK HARDWARE

ANCHOR MOORING CLEAT: STAINLESS STEEL 8 INCH HERRESHOFF STYLE BOAT CLEAT

BOW CHOCKS: RMI CUSTOM TO MATCH BULWARK CAPRAIL

DECK HATCH:FREEMAN MARINE 3130, AWLGRIP FINISH, SINGLE DOG

CLEATS: STAINLESS STEEL 8 INCH HERRESHOFF STYLE BOAT CLEAT

TANK FILLS & FITTINGS: STAINLESS STEEL (DIESEL, WATER,)

ROD HOLDERS: PORT AND STARBOARD

CANVAS WORK

CUSHIONS FOR ALL SEATING IN SUNBRELLA FABRIC

2-PART FOLDING DODGER, CAN BE USED AS WINDSHIELD, SS FRAME, 1 1/8” OD TUBING, ANDISINGLASS WINDOWS

BOLT ROPE WITH S/S TRACK RECESSED INTO COCKPIT COAMING CAP

FOLDS DOWN INSIDE COAMING

DROP CURTAIN

COCKPIT COVERS – MAIN CONSOLE AND HELM SEAT

BARE TEAK FOOTSTOOL

FULL WINTER COVER
